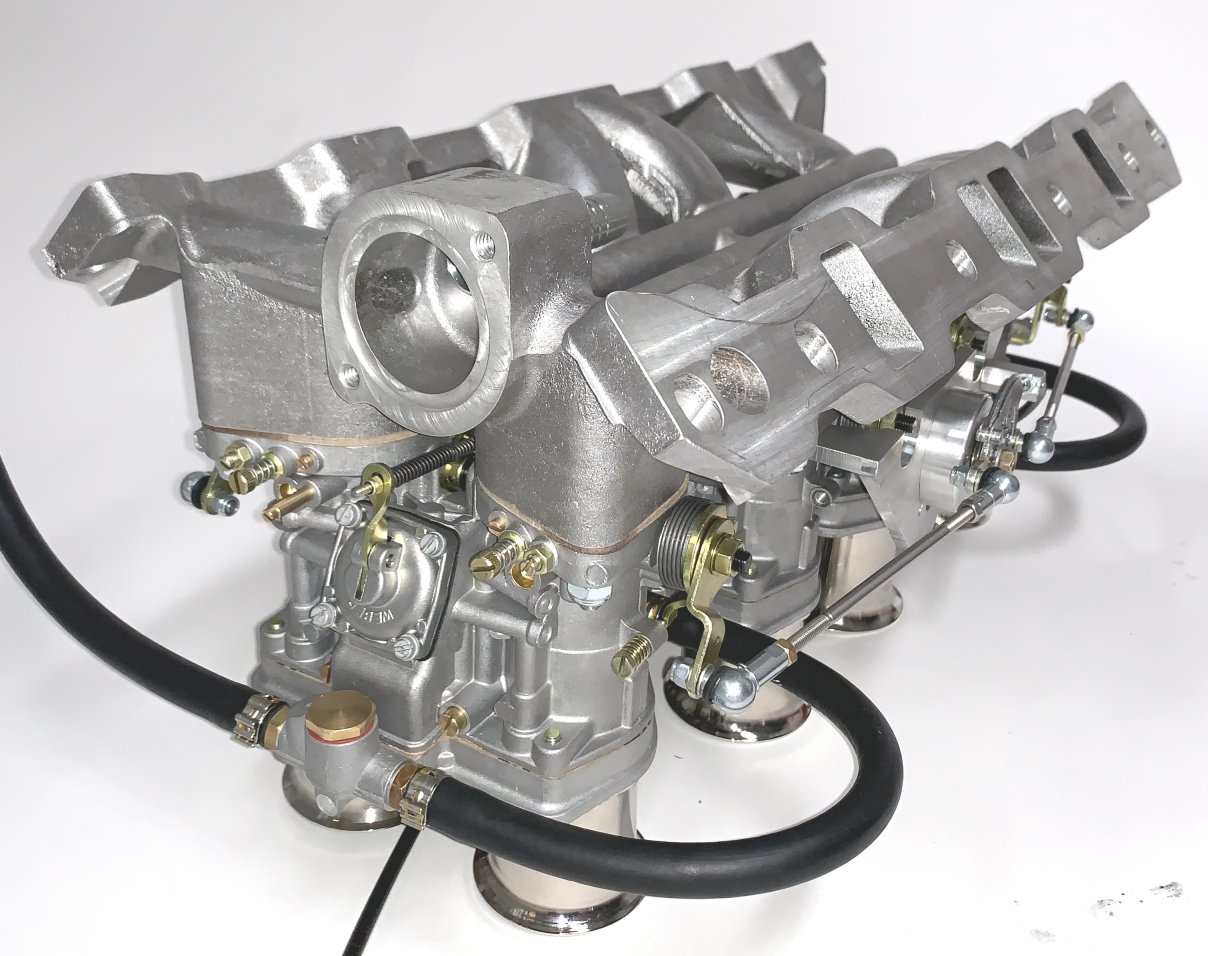

Rover V8 4 x Weber 44 IDF INLINE

Now Webcon has revised the design and positioned four Weber IDF carburettors in a line along the the manifold between the heads, much like the early Aston Martin V8, creating an overall lower profile.

The height of the assembly from the top of the intake port to the top flange of the carburettors is 150mm. The stock air horns are 63mm giving an overall height of 206mm. This can be reduced by 40mm by using 16mm air horns and low profile emulsion tube holders

Suitable Mesh Air Filters

The 44IDFs in the kit are supplied with the following “starting point” calibration which will allow the engine to start and run.

Venturi               36mm

Auxilliary venturi  4.5

Main jet              135

Air corrector         175

Emulsion tube      F11

Idle jet               50

Pump jet             50

To achieve maximum power, driveability and efficiency, we recommend that you have the carburettors calibrated on a rolling road.

Please note that, owing to our policy of continuous improvement, kit contents may be subject to change without prior notice.

JDA-PRV403
