Dellorto Carburettor Manuals and Diagrams

On this page, we provide access to a list of carburettor manuals and diagrams for Dellorto carburettors.

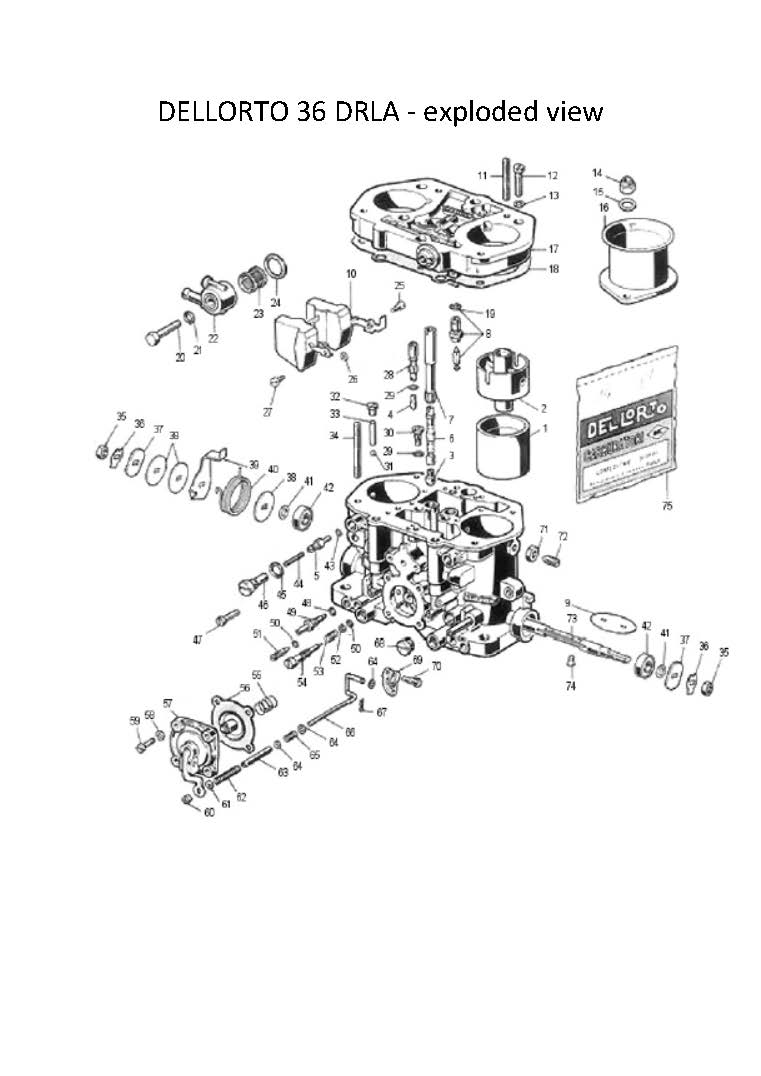

DELLORTO 36 DRLA

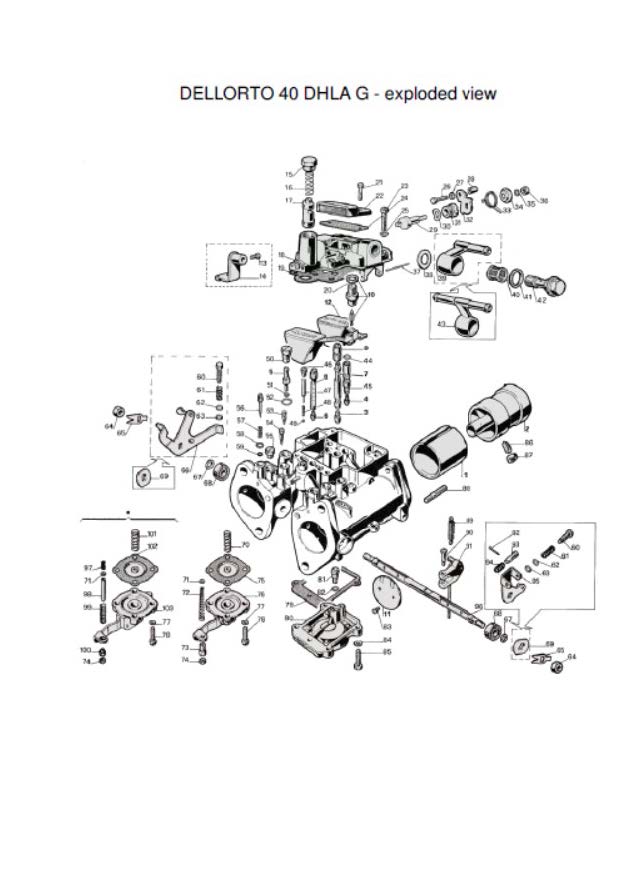

DELLORTO 40 DHLA G

DELLORTO 45 DHLA JDA

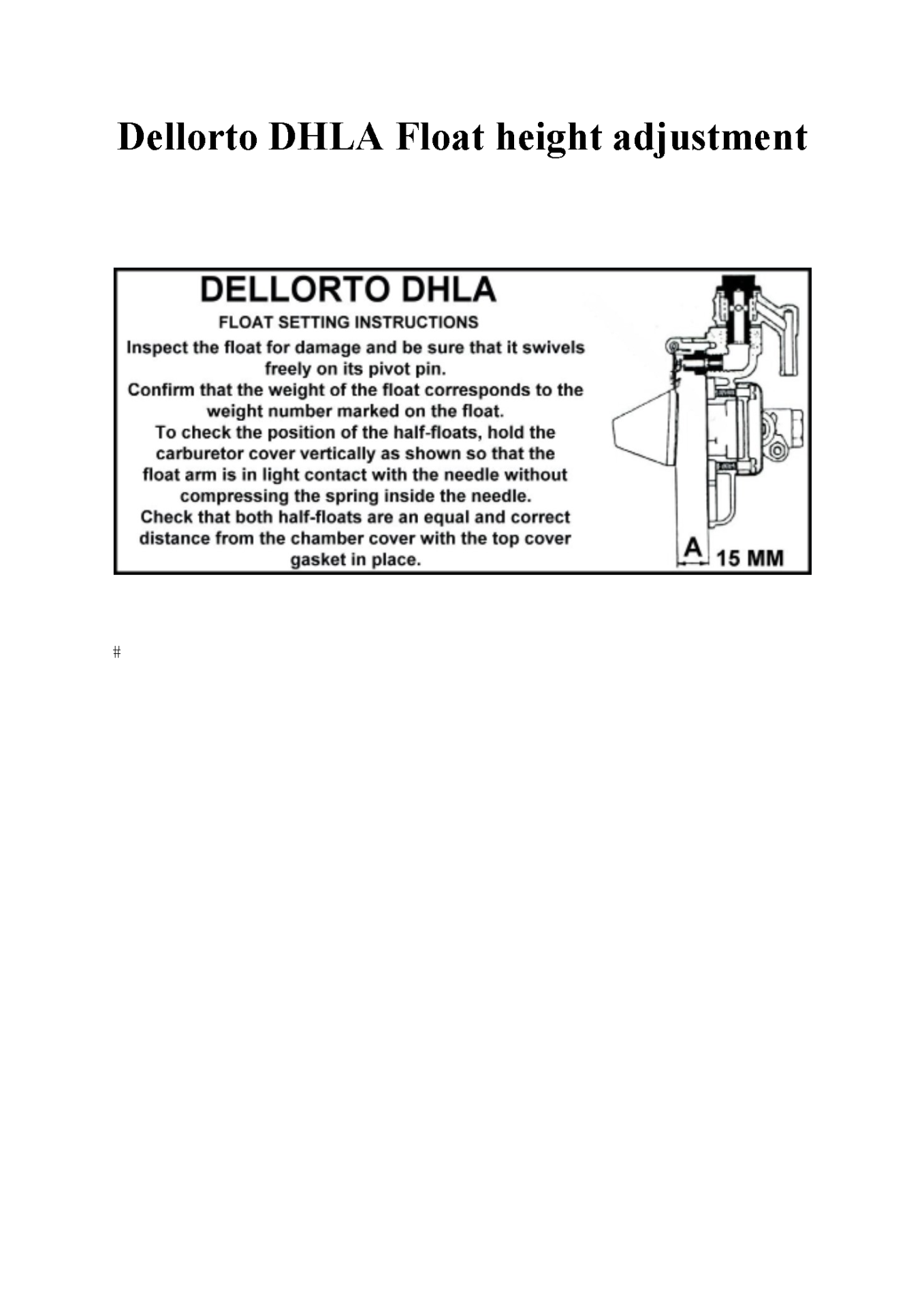

Dellorto DHAL Float height adjustment

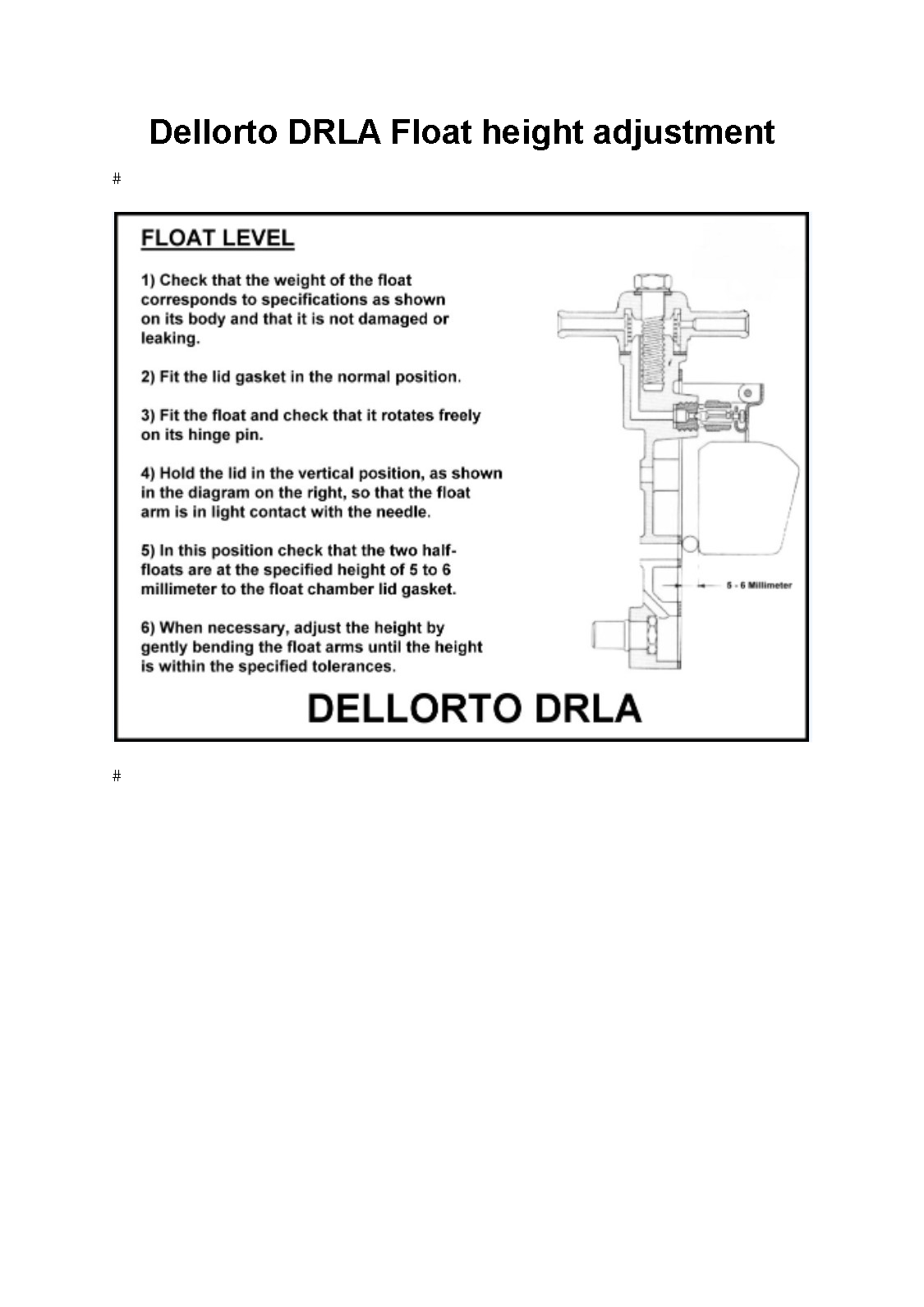

Dellorto DRLA Float height adjustment
